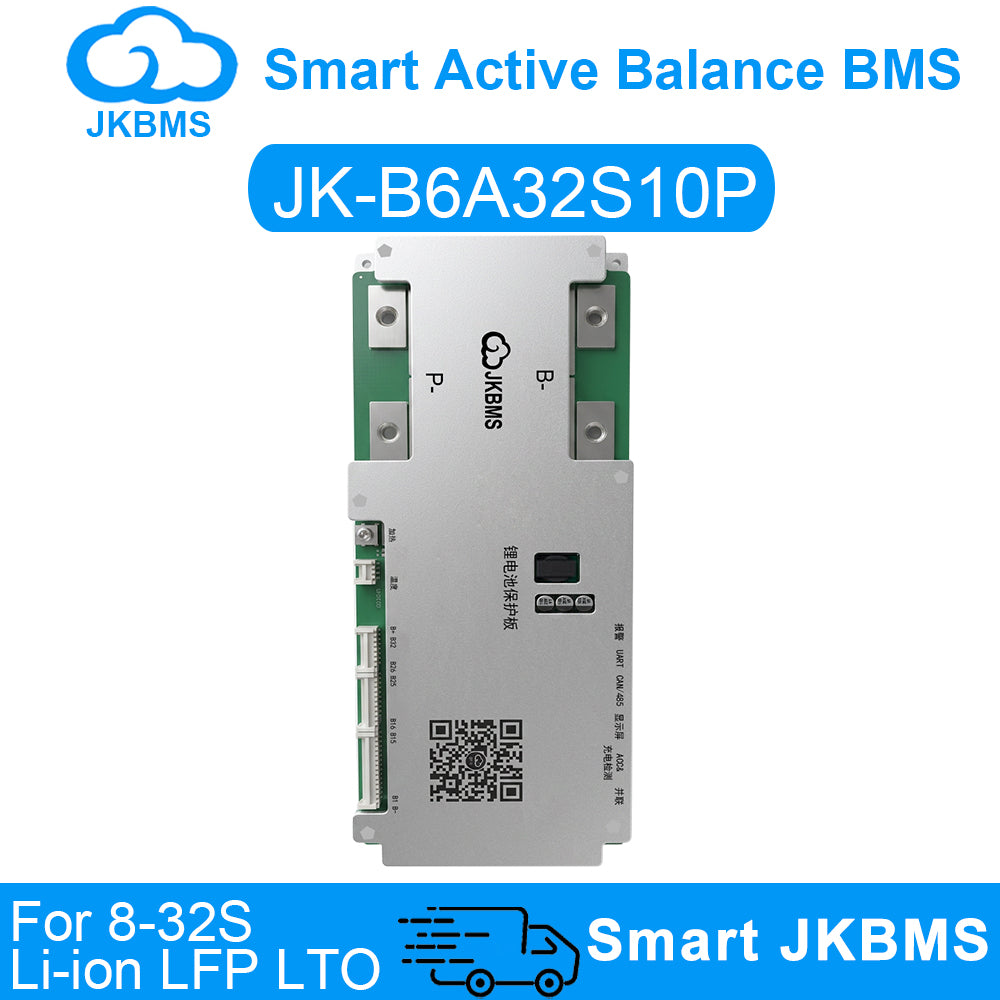

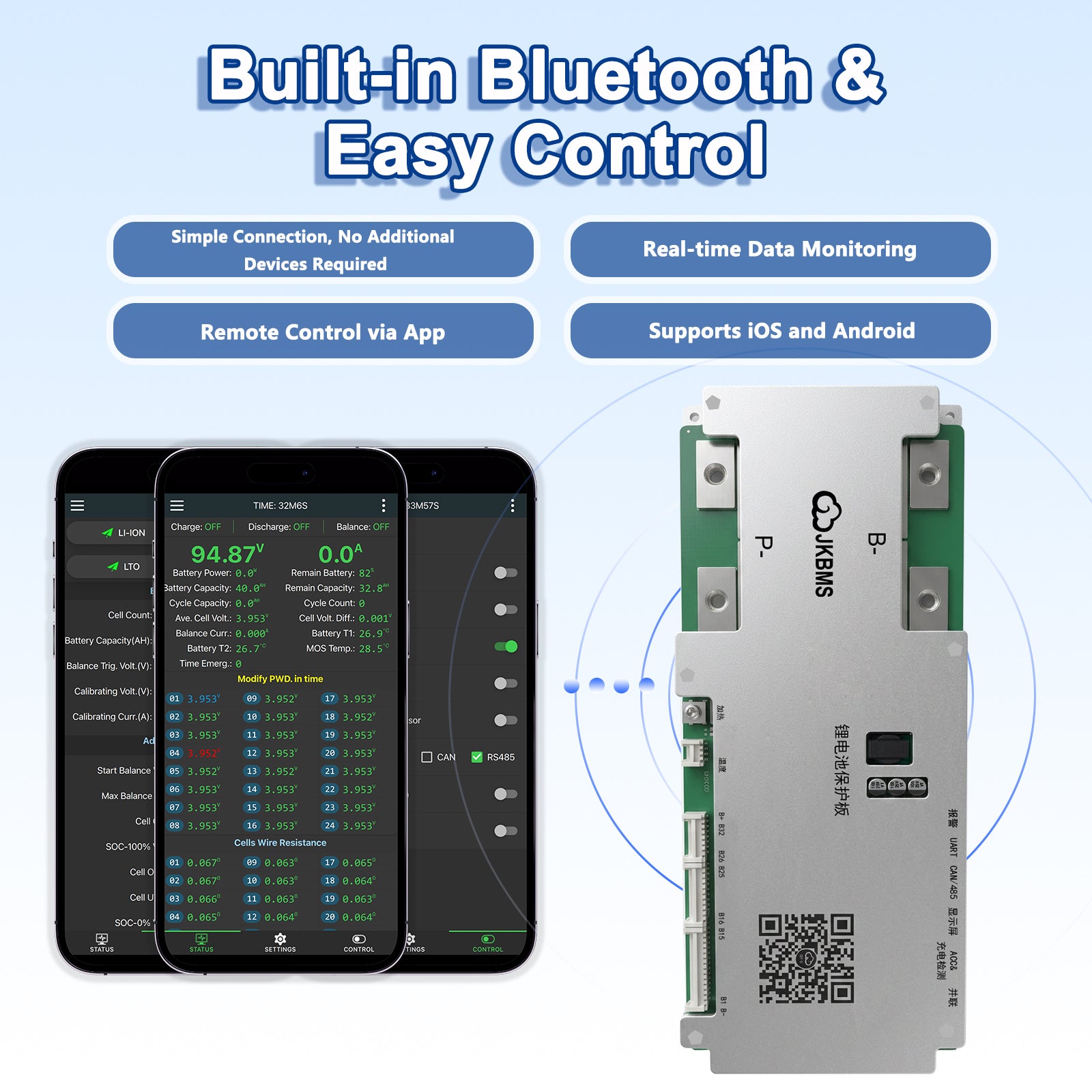

JK-BD6A32S-10P | 32S 100A BMS Protection Board

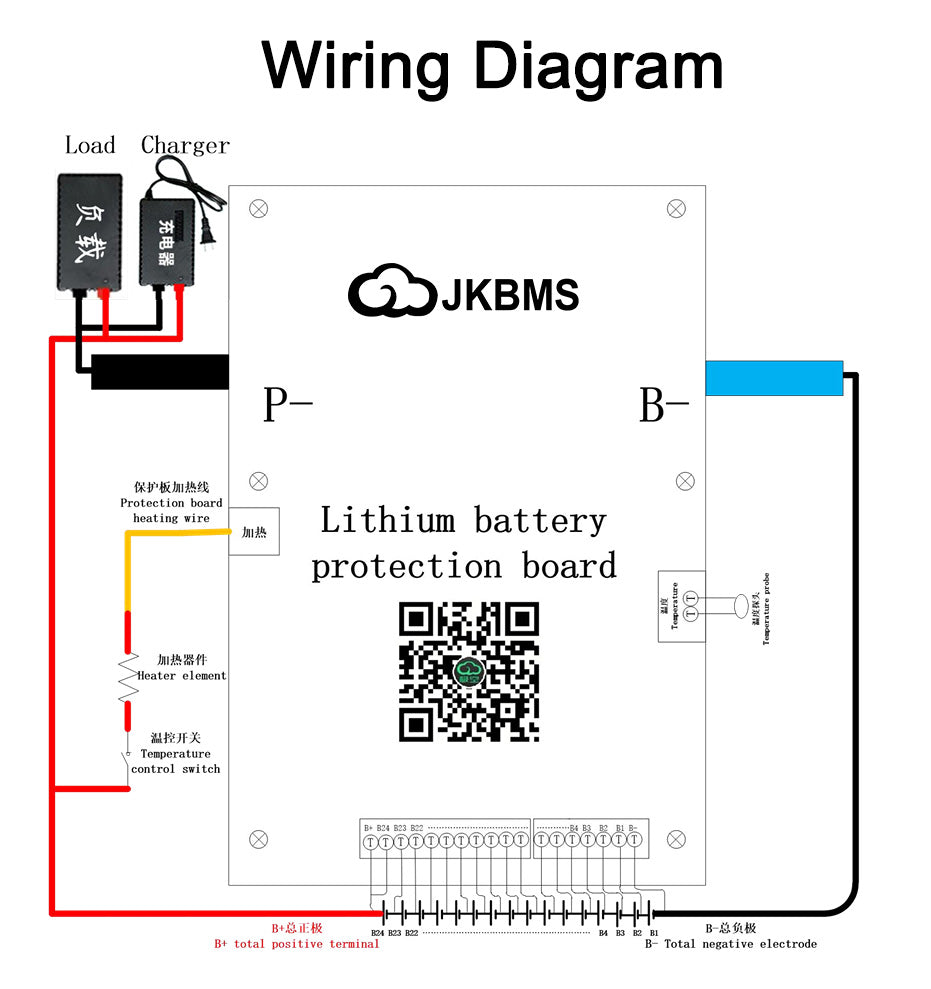

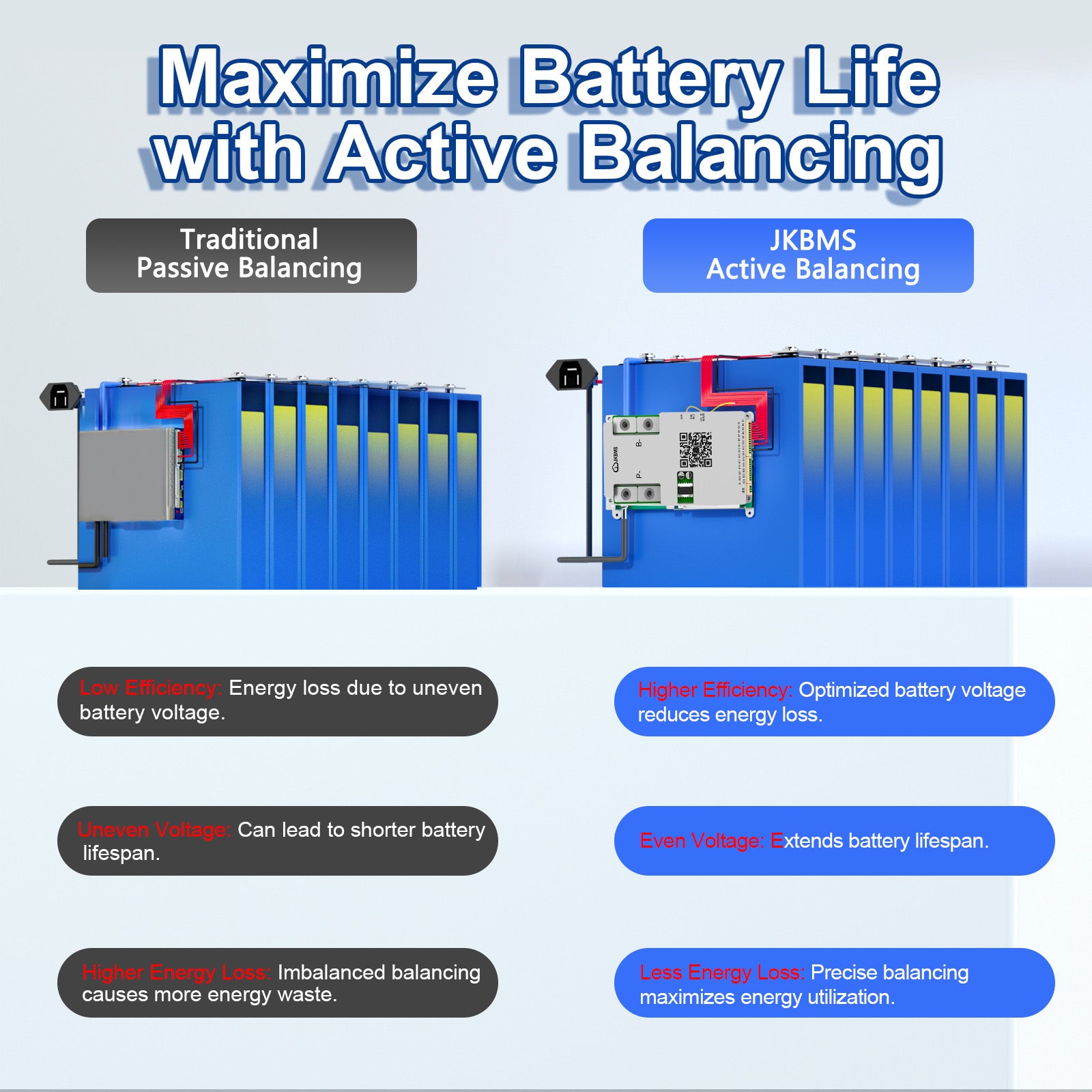

Model Naming Convention
-
JK: Company code
-
B: Regular model (No parallel/external connection)
-
D6: Balancing current 0.6A
-
A: Balancing current unit
-
32S: Maximum 32 strings
-
10P: 100A continuous charging and discharging current
Compatible Battery Strings
| Battery Type |
Number of Adaptive Battery Strings |
| Ternary lithium battery |
7~32 |
| Lithium iron battery (LiFePO4) |
8~32 |
| Lithium titanate battery (LTO) |
14~32 |

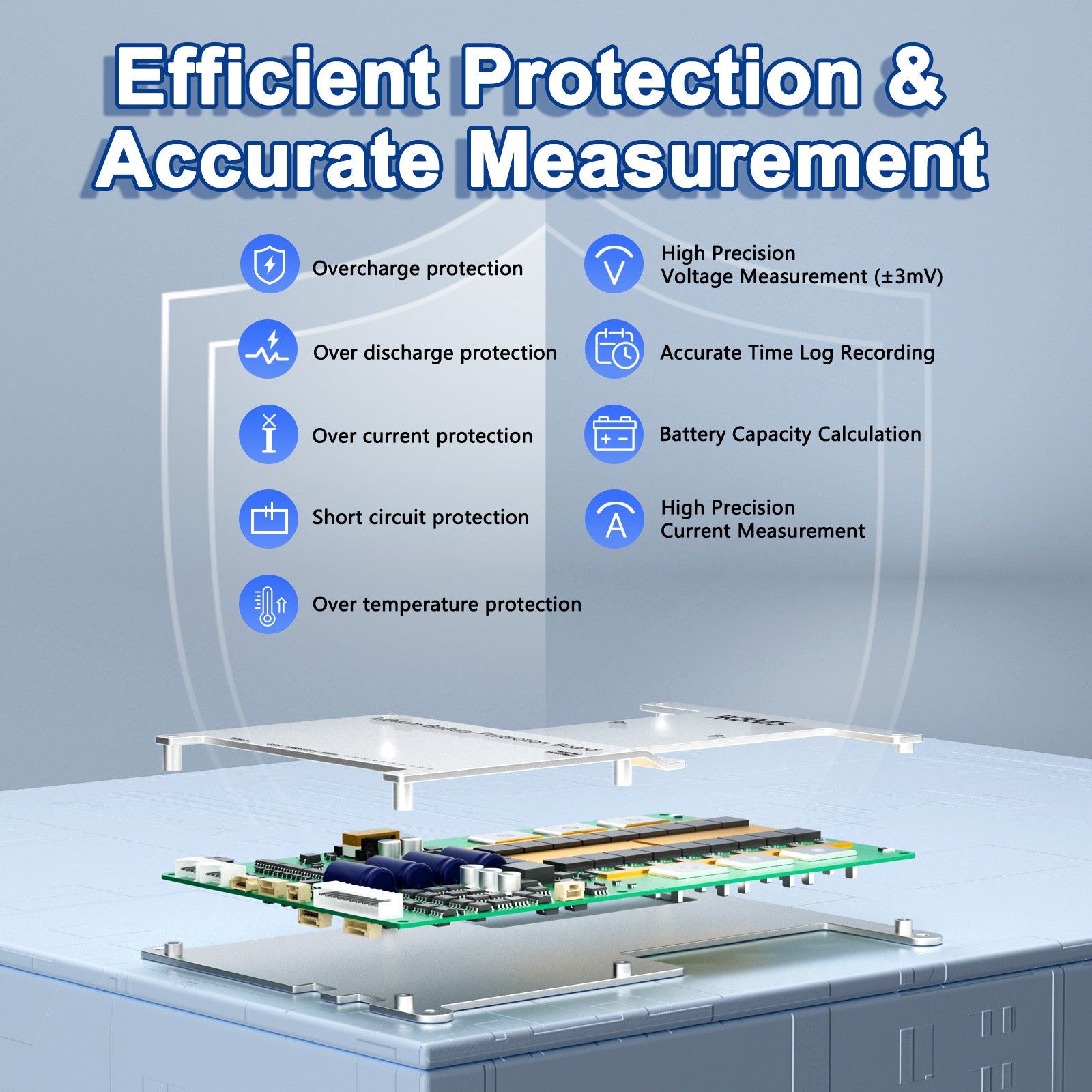

Basic Parameters
| No. |
Parameter |
Value |
Unit |
| 1 |
Supply voltage |
20-130 |
V |
| 2 |
Operating power consumption |
≤1050 |
mW |
| 3 |
Operating temperature |
-30 ~ 70 |
°C |
| 4 |
Maximum number of collection strings |
32 |
String |
| 5 |
Maximum balancing current |
0.6 / 1 |
A |
| 6 |
Maximum charging current |
100 |
A |
| 7 |
Maximum discharge current |
100 |
A |
| 8 |
Maximum instantaneous current |
200 |
A |
| 9 |
Maximum internal loop resistance |
1.532 |
mΩ |
| 10 |
Protective plate size |
251.3×101.5×15.6 |
mm |
| 11 |
Finished weight |
708 |
g |
Default Parameters
| No. |
Parameter |
LI-ION |
LIFEPO4 |
LTO |
Unit |
| 1 |
Balancing initial voltage |
3 |
3 |
2 |
V |
| 2 |
Maximum balancing current |
0.6 / 1 |
0.6 / 1 |
0.6 / 1 |
A |
| 3 |
Unit overcharge voltage |
4.2 |
3.6 |
2.7 |
V |
| 4 |
Single overcharge protection recovery |
4.18 |
3.55 |
2.65 |
V |
| 5 |
Monomer undervoltage protection |
2.82 |
2.6 |
1.8 |
V |
| 6 |
Single undervoltage protection recovery |
2.85 |
2.65 |
1.85 |
V |
| 7 |
Automatic shutdown voltage |
2.8 |
2.5 |
1.7 |
V |
| 8 |
SOC-0% voltage |
2.9 |
2.6 |
1.85 |
V |
| 9 |
SOC-100% voltage |
4.18 |
3.5 |
2.65 |
V |
| 10 |
Trigger balancing differential pressure |
0.01 |
0.01 |
0.01 |
V |
| 11 |
Charging overcurrent protection delay |
30 |
30 |
30 |
S |
| 12 |
Charge overcurrent protection release time |
60 |
60 |
60 |
S |
| 13 |
Discharge overcurrent protection delay |
300 |
300 |
300 |
S |
| 14 |
Discharge overcurrent protection release time |
60 |
60 |
60 |
S |
| 15 |
Short-circuit protection delay |
5 |
5 |
5 |
uS |
| 16 |
Short circuit protection release time |
30 |
30 |
30 |
S |
| 17 |
Charging overtemperature protection |
70 |
70 |
70 |
°C |
| 18 |
Charge overtemperature restore temperature |
60 |
60 |
60 |
°C |
| 19 |
Discharge overtemperature protection |
70 |
70 |
70 |
°C |
| 20 |
Discharge overtemperature recovery temperature |
60 |
60 |
60 |
°C |
| 21 |
Charging low temperature protection |
-20 |
-20 |
-20 |
°C |
| 22 |
Charge low temperature restore temperature |
-10 |
-10 |
-10 |
°C |
| 23 |
MOS overtemperature protection temperature |
100 |
100 |
100 |
°C |
| 24 |
MOS overtemperature protection recovery |
80 |
80 |
80 |
°C |
| 25 |
Device address |
0 |
0 |
0 |
/ |
| 26 |
Discharge precharge time |
5 |
5 |
5 |
S |
Variant Options
-
Standard: Base model
-
R: With RS485 communication interface
-
HC: With Heating + CAN communication
-
HCR: With Heating + CAN + RS485 (full-featured)
