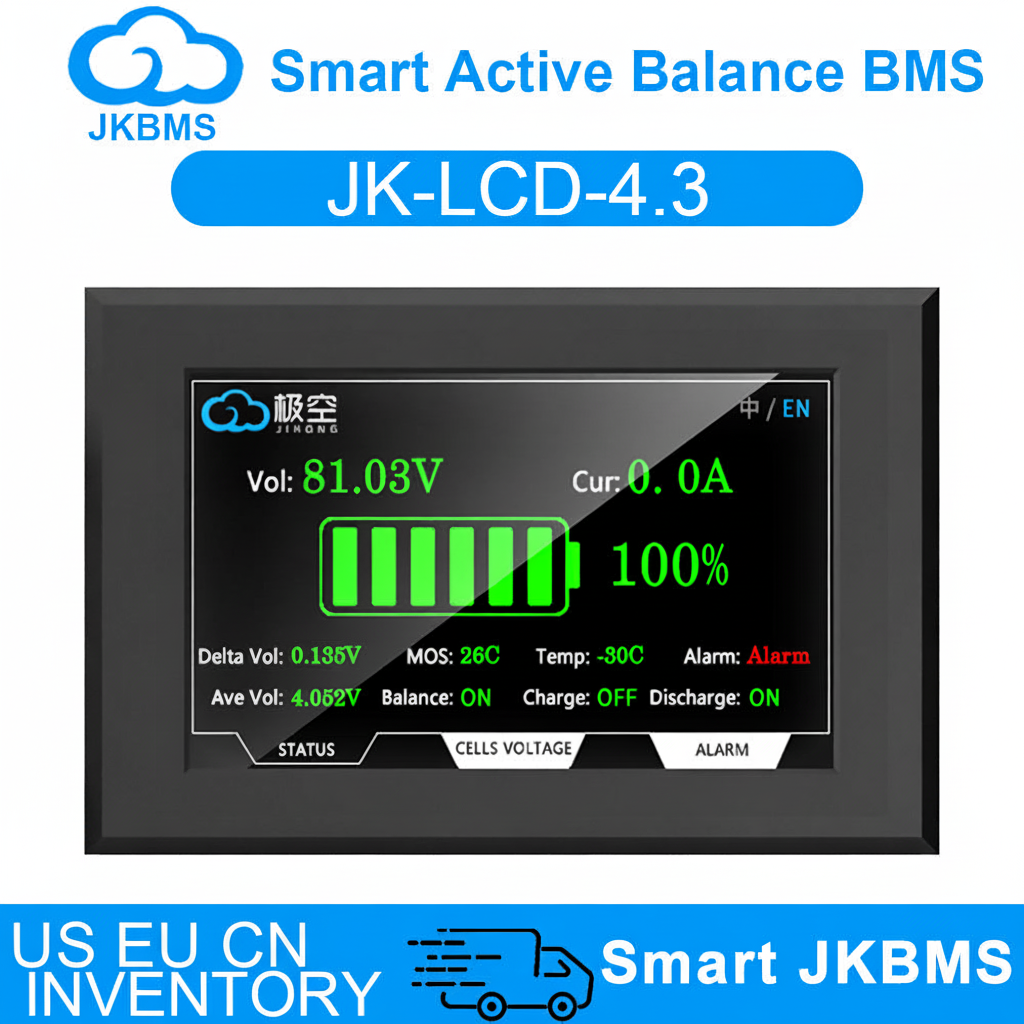

JKBMS Accessory 4.3 Inch LCD Touch Screen Monitor with Switch for JK BMS LiFePO4 Li-ion Battery Protection Board

Please note: This screen is not suitable for JKBMS Inverter BMS V19 version

Specifications:

Display Category:TFT

Screen size: 4.3 inch

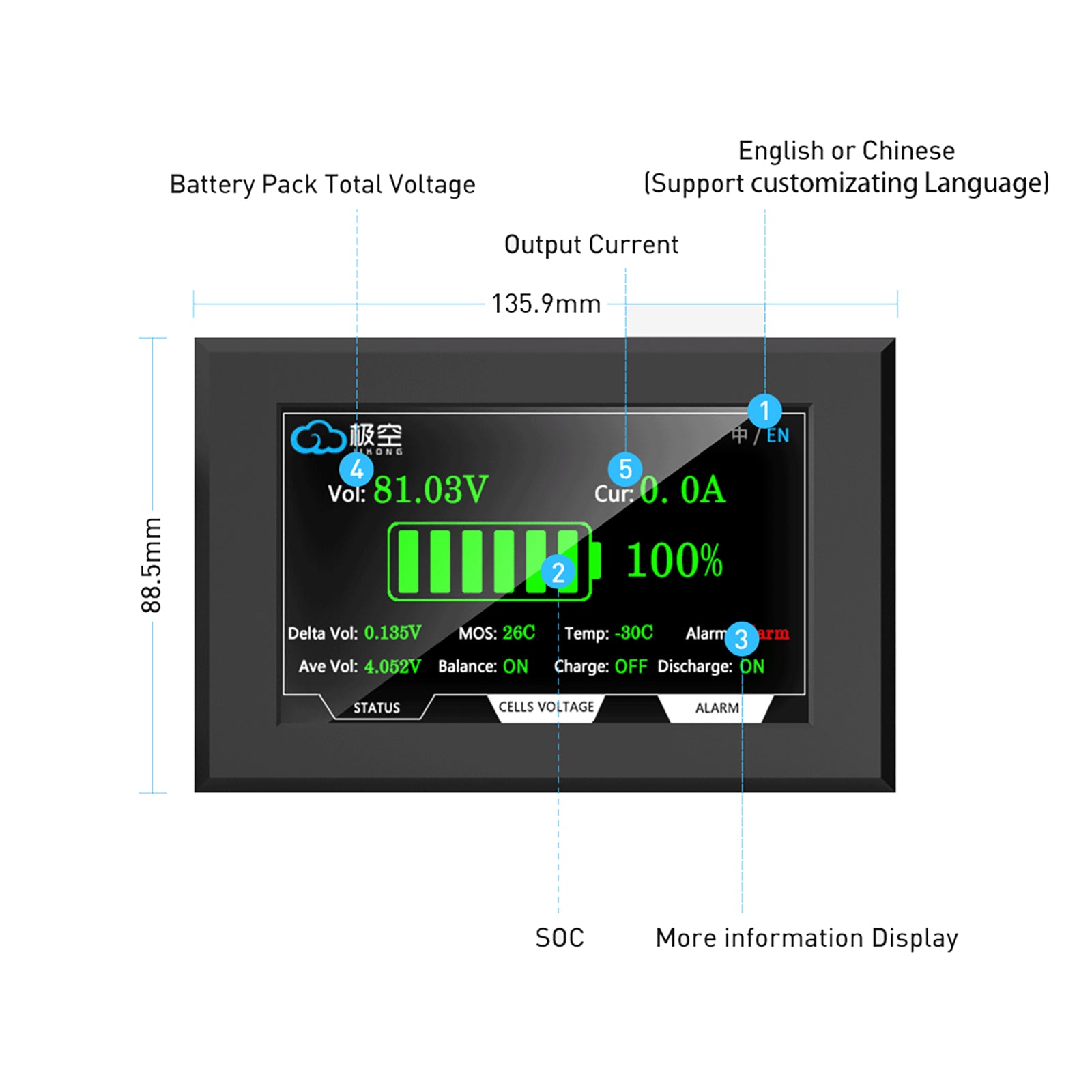

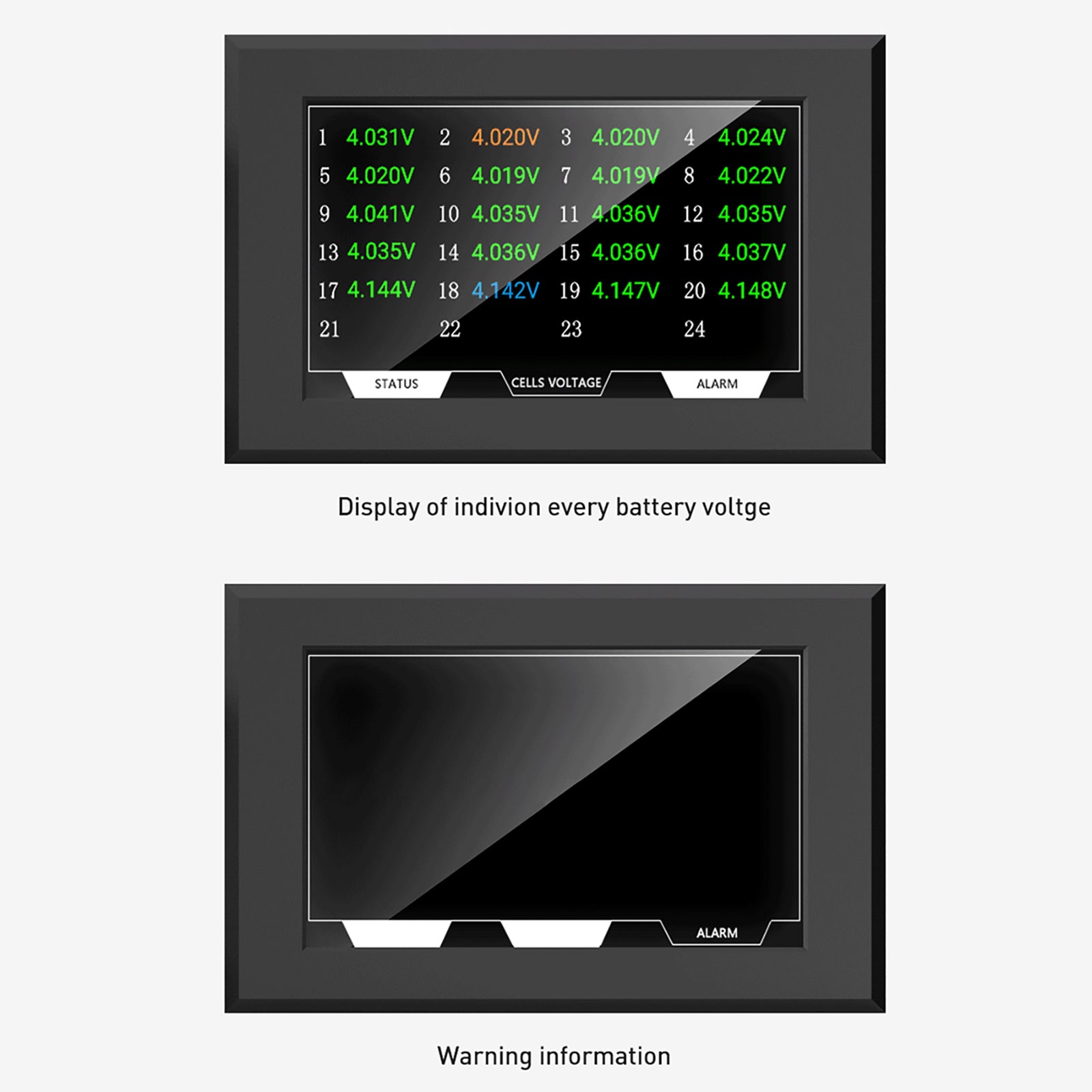

Display content: Battery pack voltage, Current, SOC, Individual cell voltage, Temperature, etc.

Device size: 140*98*28.8 mm

Screen size: 95*53.9 mm / Resolution: 480*272

Cable length:

Protection board end, total length 0.5 meters

Display screen end, total length 2.5 meters

Power supply: external 12V power adapter

Display Color:65K True Color

Backlight type/brightness: LED/300nit/m2

Viewing Angle:L/R/U/D 70°/70°/50°/70°

Operating temperature:-20~+70℃

Storage temperature:-30~+85℃

Power supply voltage:Min 10V Max 24V

SD Card Interface:SD/SDHC

Liquid crystal screen operation instructions

BMS off state, a single press on the left side of the LCD screen touch button, BMS power-on.

BMS power on state, the display if 10 seconds does not detect the BMS current output will turn off the LCD backlight to reduce power consumption.

BMS power on state, if the display does not show the content, single press the left side of the LCD screen touch button, the LCD screen to turn on the backlight.

If the monitor is displaying the content under the BMS power-on state, single press the left touch button of LCD screen, LCD screen will turn off the backlight.

When the BMS is on, long press the left touch button of the LCD for 2 seconds, the BMS will turn off.

NOTE:

LCD interface(At present, all JKBMS are configured with LCD interface by default)

(Except of JKBD4A17S4P)
