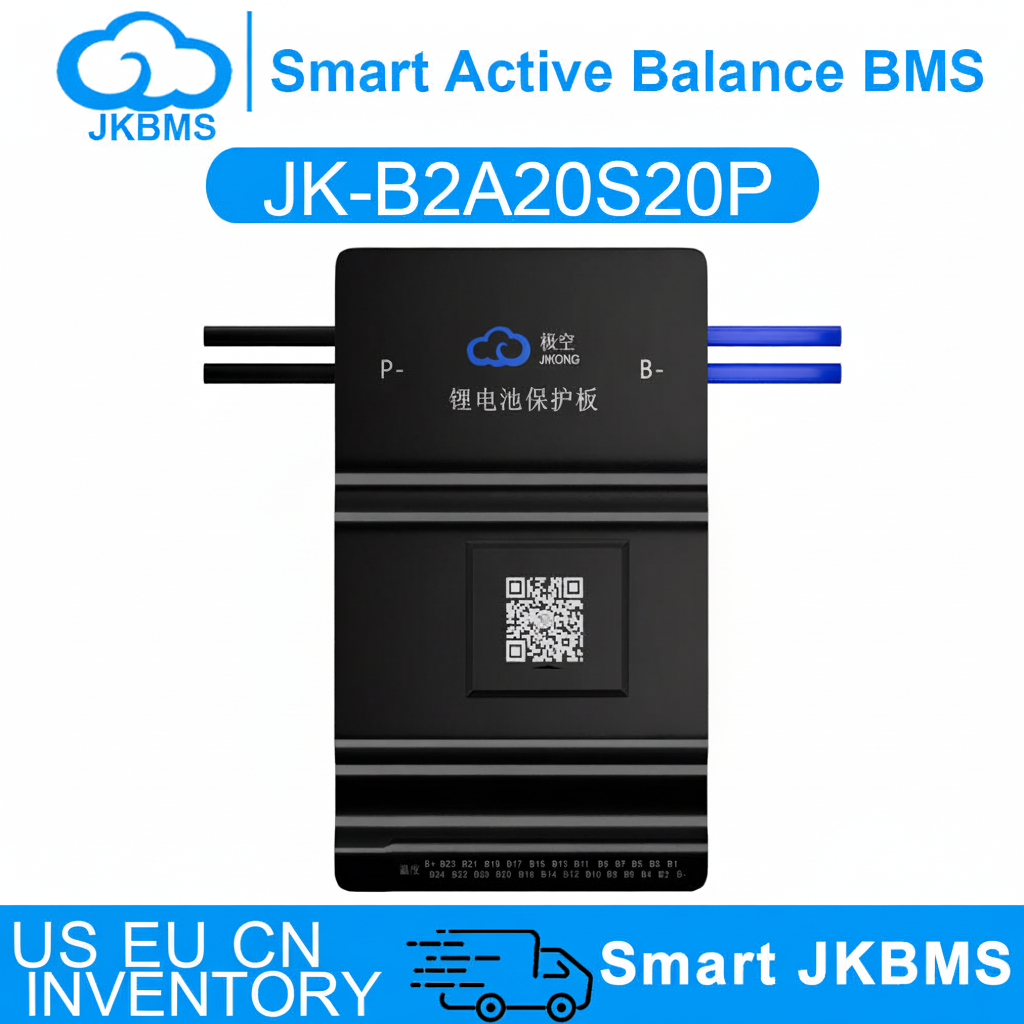

JKBMS JK-B2A20S20P | 200A Smart BMS for Electric Sightseeing Vehicle & Small ESS | 8S-20S LiFePO4 Li-ion | 2A Active Balance
JKBMS JK-B2A20S20P | 200A Smart BMS for Electric Sightseeing Vehicle & Small ESS | 8S-20S LiFePO4 Li-ion | 2A Active Balance
Couldn't load pickup availability
Heavy-Load at 60V — JKBMS JK-B2A20S20P 200A Smart BMS for 8S–20S
The JK-B2A20S20P covers the 8S–20S voltage range (24V–60V) at 200A continuous current with 2A active balancing — the right fit for electric sightseeing vehicles, electric tricycles, and UPS backup power systems in the heavy-load category. With Bluetooth and UART for LCD display monitoring as standard, pack health is always visible.
Compatible chemistries: LiFePO4 / Li-ion / LTO

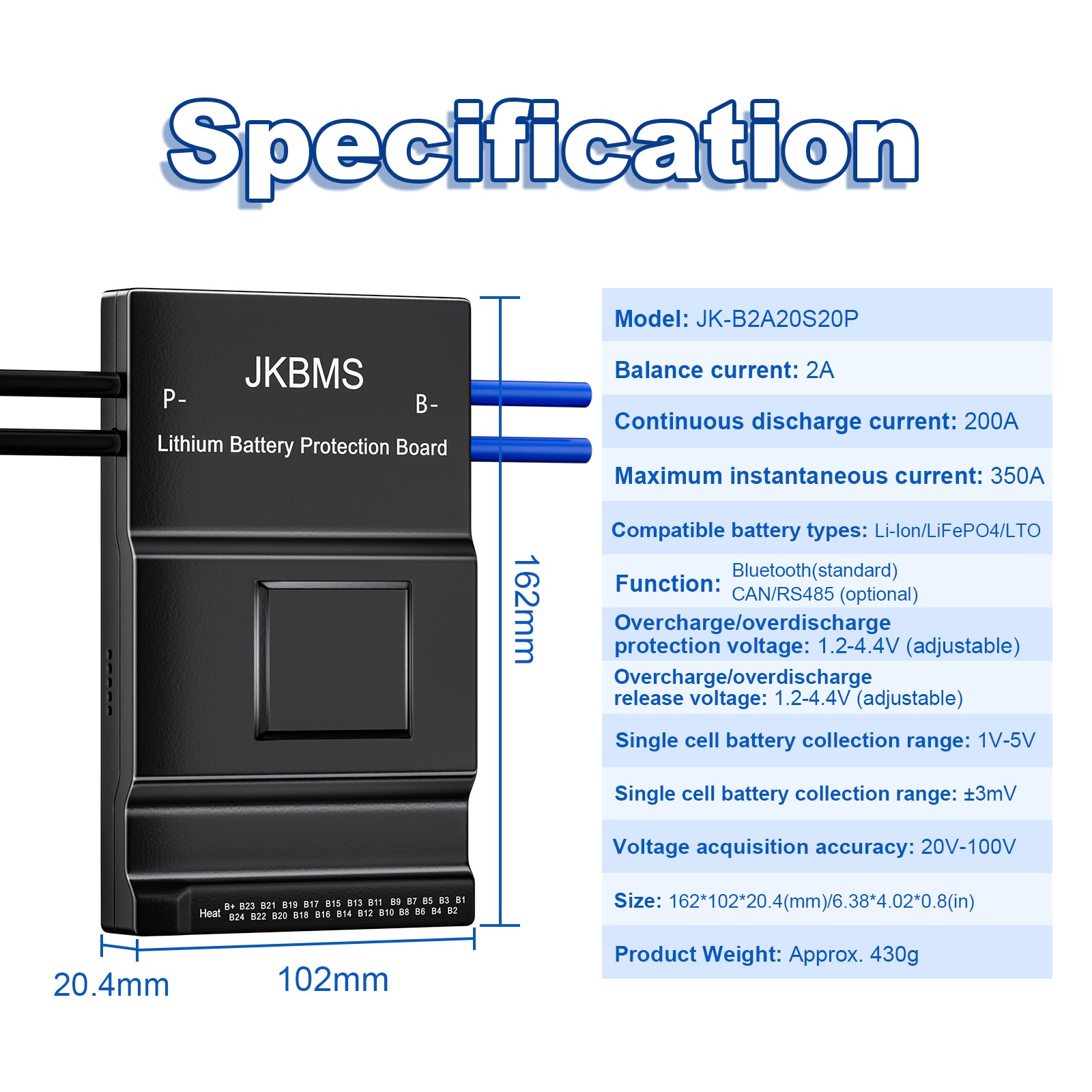

Key Specifications
| Parameter | Specification |
|---|---|
| Model | JK-B2A20S20P |
| Cell Configuration | 8S – 20S (24V – 60V) |
| Continuous Current | 200A |
| Active Balance Current | 2A |
| Standard Communication | Bluetooth + UART (LCD display port) |
| Compatible Chemistry | LiFePO4, Li-ion, LTO |
| Protection | Over-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature |
Voltage Platform & Load Class — Where This BMS Fits
📊 20S (60V) — Heavy-Load Applications at 200A
The 20S platform at 60V covers electric sightseeing vehicles, electric tricycles, and UPS systems in the heavy-load category (150–200A). At 200A with 2A active balancing, this BMS delivers maximum cell consistency through demanding daily cycles.
⚡ 2A Active Balancing — Faster Equalization, Longer Pack Life
At 2A, the active balancer equalizes cells fast enough to keep them matched during the charge cycle — tighter voltage spread, more usable capacity, and slower capacity fade over the pack's lifetime compared to 1A models.
Who Is This BMS For?
- 🛴 Electric sightseeing vehicles (48V–60V, heavy-load)
- 🚲 Electric tricycles and light cargo EVs
- 🔋 UPS & backup power systems (24V–60V)
- 🏭 OEM manufacturers of 24V–60V 200A lithium battery packs
Compare Versions — Find the Right Fit
| Feature | Standard (This Model) | HC Version | HCR Version |
|---|---|---|---|
| Bluetooth | ✅ | ✅ | ✅ |
| UART (LCD port) | ✅ | ✅ | ✅ |
| CAN Bus | ❌ | ✅ | ✅ |
| Heating Film Control | ❌ | ✅ | ✅ |
| RS485 | ❌ | ❌ | ✅ |
| Soft Parallel (PLINK Module) | ❌ | ✅ | ✅ |
| Hard Parallel (Parallel Module) | ❌ | ❌ | ✅ |
| Buzzer Alert | ❌ | ❌ | ✅ |
📩 Not sure which version fits? Contact us.
OEM / ODM & Bulk Orders
📩 For wholesale pricing, MOQ, and custom configurations, please contact us directly.
