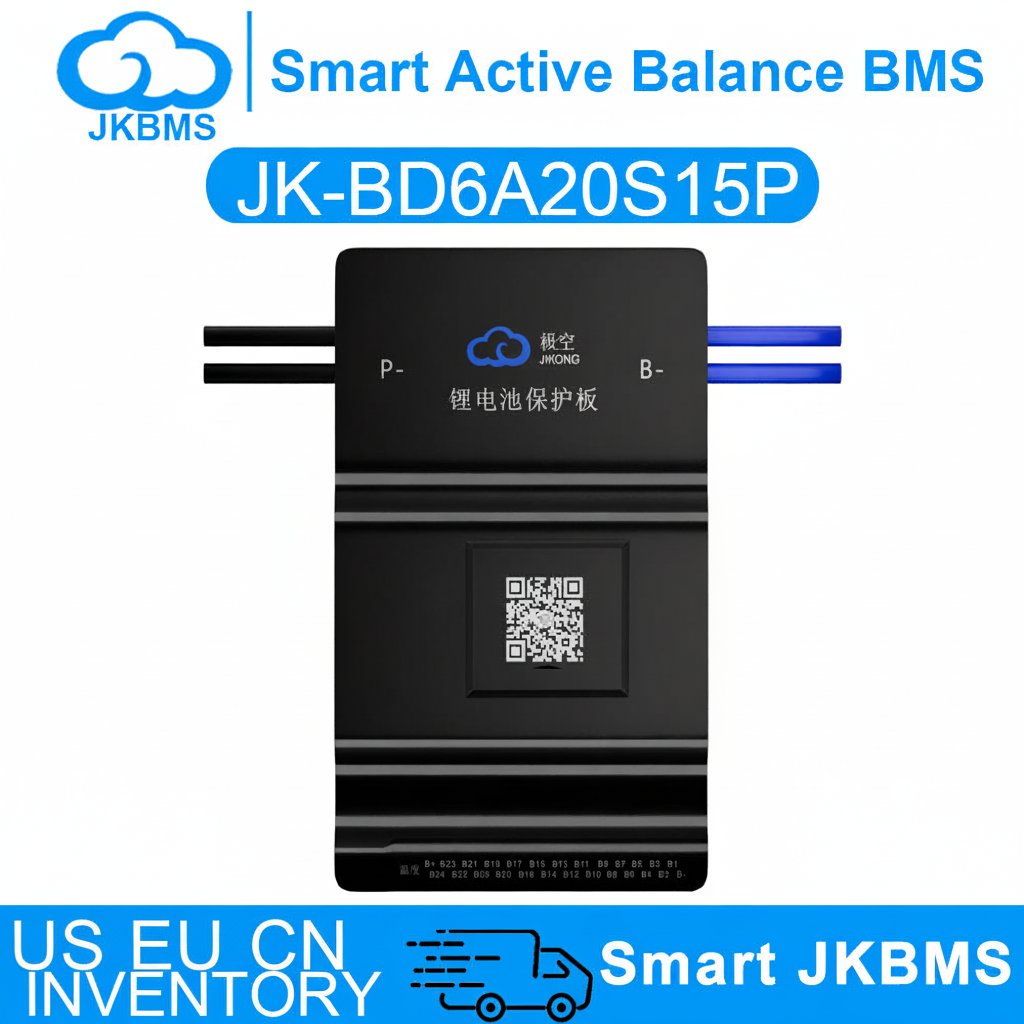

JKBMS JK-BD6A20S15P | 150A Smart BMS for Backup Power Supply & Small ESS | 8S-20S LiFePO4 Li-ion | 0.6A Active Balance

JKBMS JK-BD6A20S15P | 150A Smart BMS for Backup Power Supply & Small ESS | 8S-20S LiFePO4 Li-ion | 0.6A Active Balance

$65.68 USD
$182.68 USD $65.68 USD
Sale Sold out
Shipping calculated at checkout.
Size

150A UPS & Sightseeing Protection at 60V — JKBMS JK-BD6A20S15P Smart BMS for 8S–20S

The JK-BD6A20S15P covers the 8S–20S voltage range (24V–60V) at 150A continuous current with 0.6A active balancing — the right fit for UPS backup power systems and electric sightseeing vehicles. With Bluetooth and UART for LCD display monitoring as standard.

Compatible chemistries: LiFePO4 / Li-ion / LTO

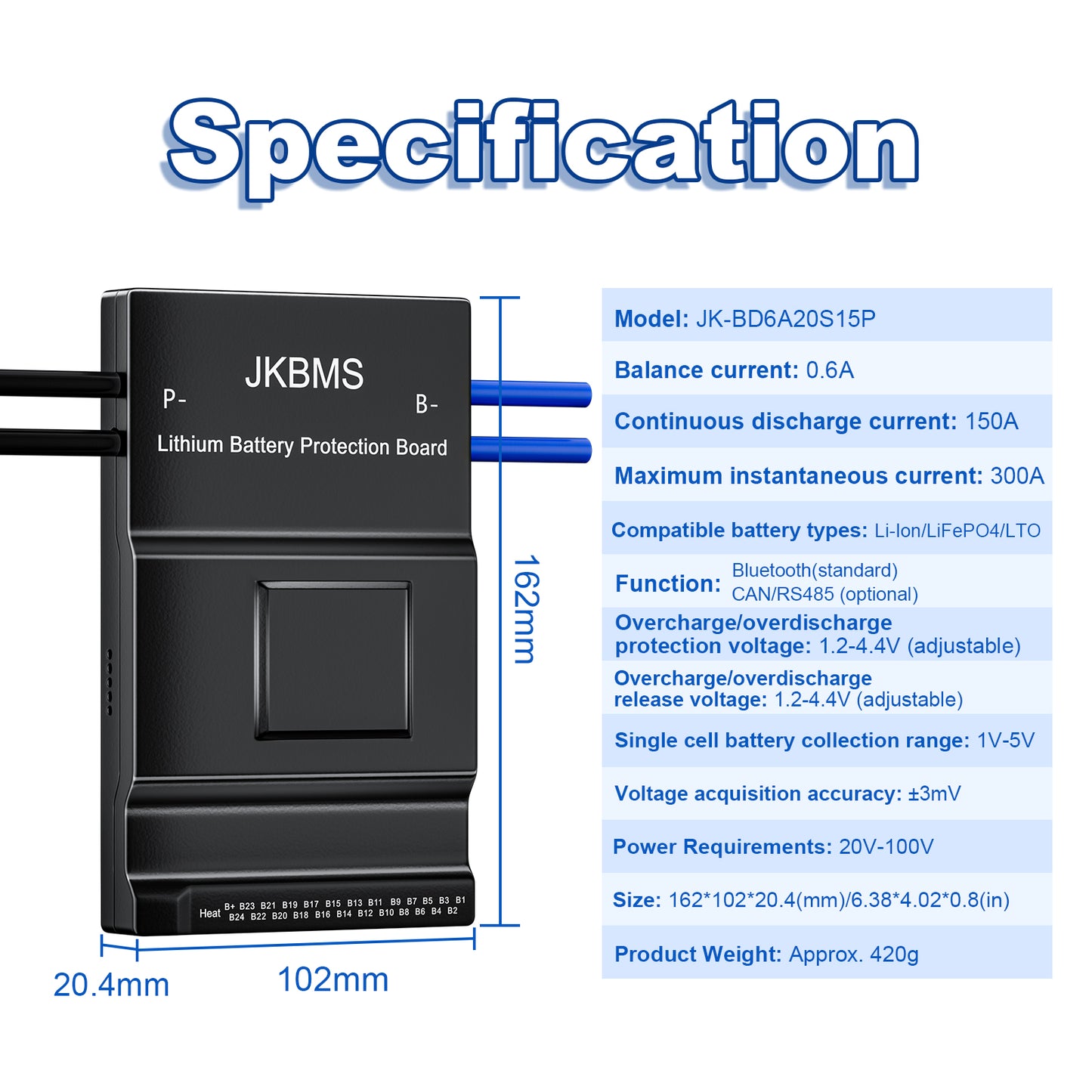

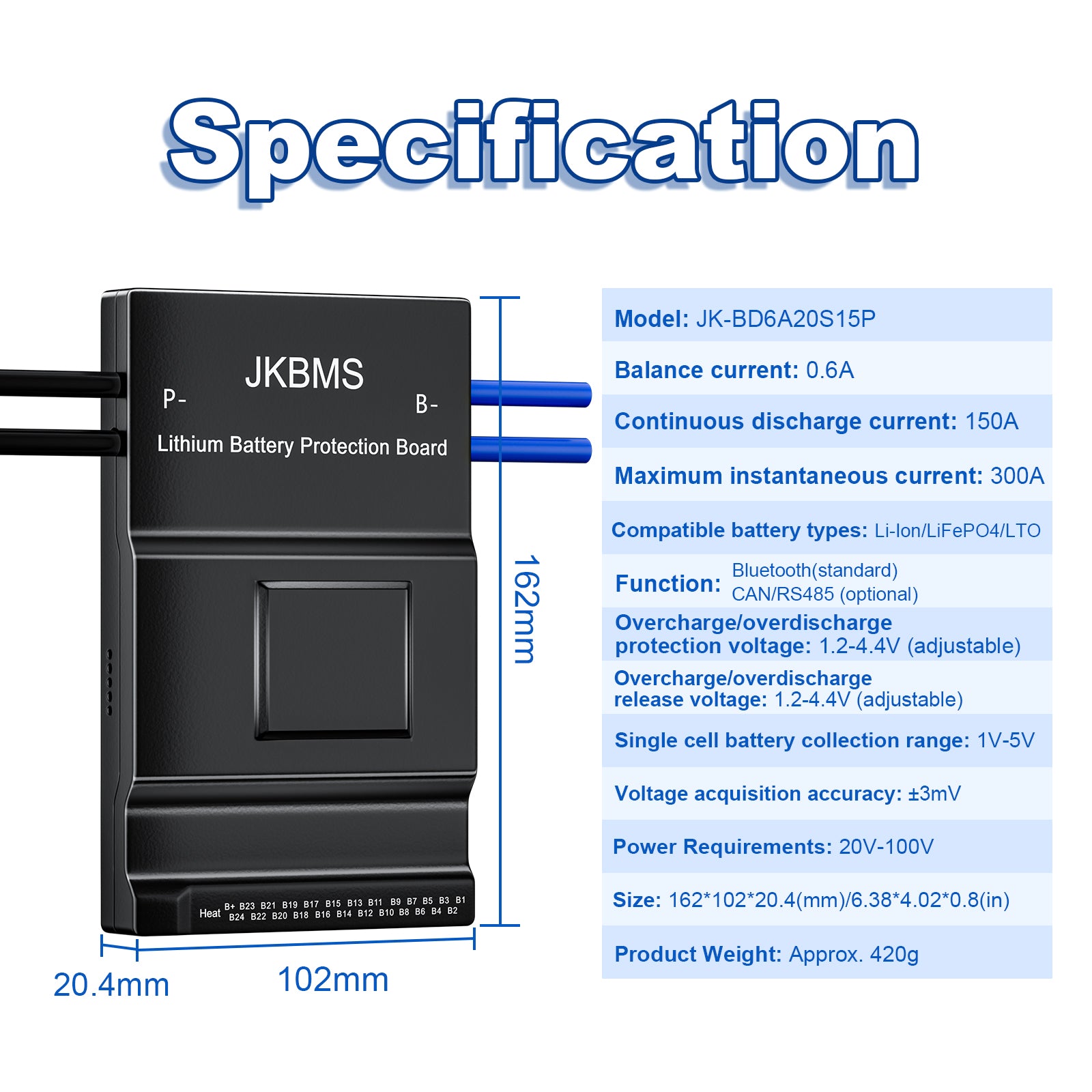

Key Specifications

Parameter Specification
Model JK-BD6A20S15P
Cell Configuration 8S – 20S (24V – 60V)
Continuous Current 150A
Active Balance Current 0.6A
Standard Communication Bluetooth + UART (LCD display port)
Compatible Chemistry LiFePO4, Li-ion, LTO
Protection Over-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature

Who Is This BMS For?

  • 🛴 Electric sightseeing vehicles (48V–60V, 150A)
  • 🔋 UPS & backup power systems (24V–60V)
  • 📦 Telecom backup battery packs
  • 🏭 OEM manufacturers of 24V–60V 150A lithium battery packs

Contact Us

Have questions, need a custom configuration, or interested in OEM / ODM & bulk orders? Our team is ready to help!
