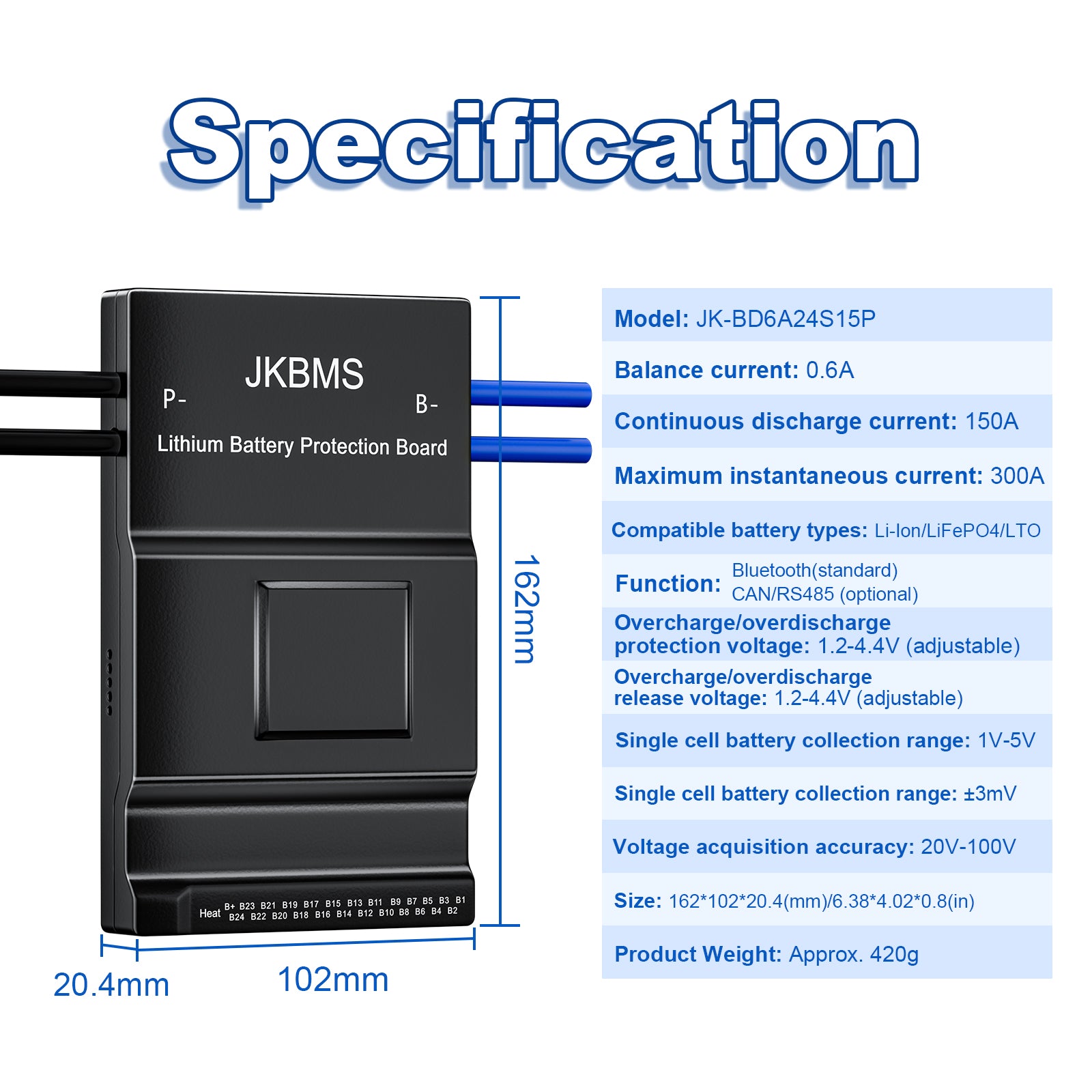

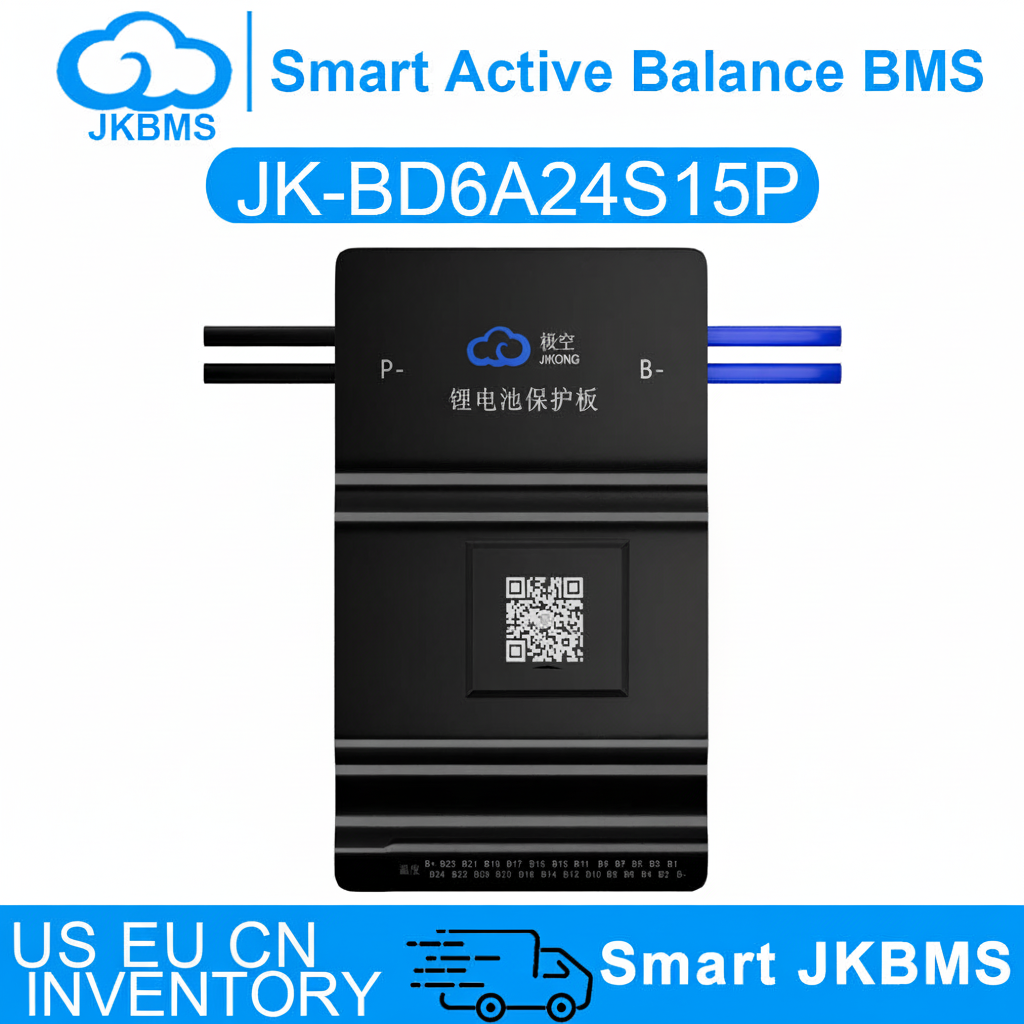

JKBMS Smart BMS 8S-24S 24V-72V 150A 0.6A Active Balance Built-in Bluetooth with RS485 Battery Protection Board for Li-ion LiFePO4 LTO Battery (JK-BD6A24S15P)

JK BMS Smart Battery Management System

The JK BMS Smart Battery Management System is designed to provide reliable protection and intelligent monitoring for lithium battery packs. It is widely used in solar energy storage systems, off-grid power systems, electric vehicles, RV batteries, and DIY battery projects.

With advanced control technology and high-efficiency active balancing, JK BMS helps maintain cell consistency, improve battery performance, and extend overall battery lifespan.

Built-in Bluetooth connectivity allows users to easily monitor battery status and system parameters in real time through the mobile app.

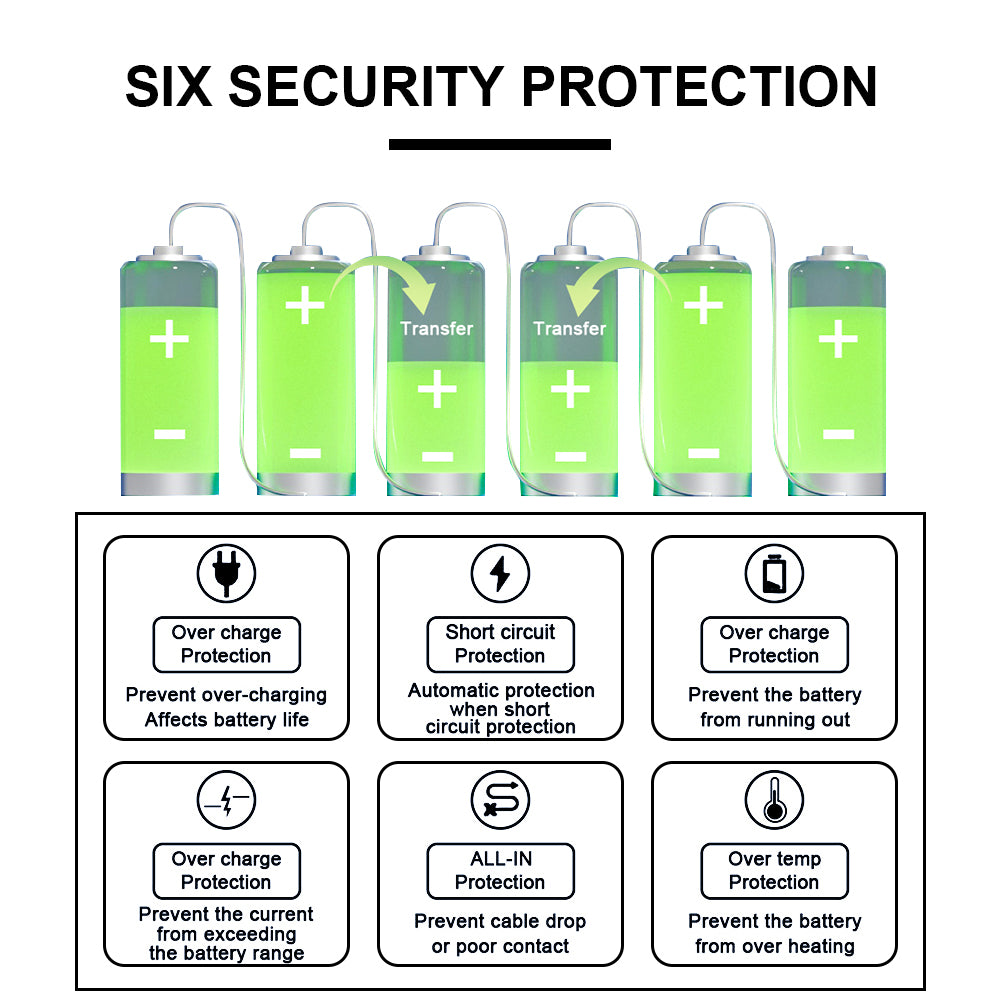

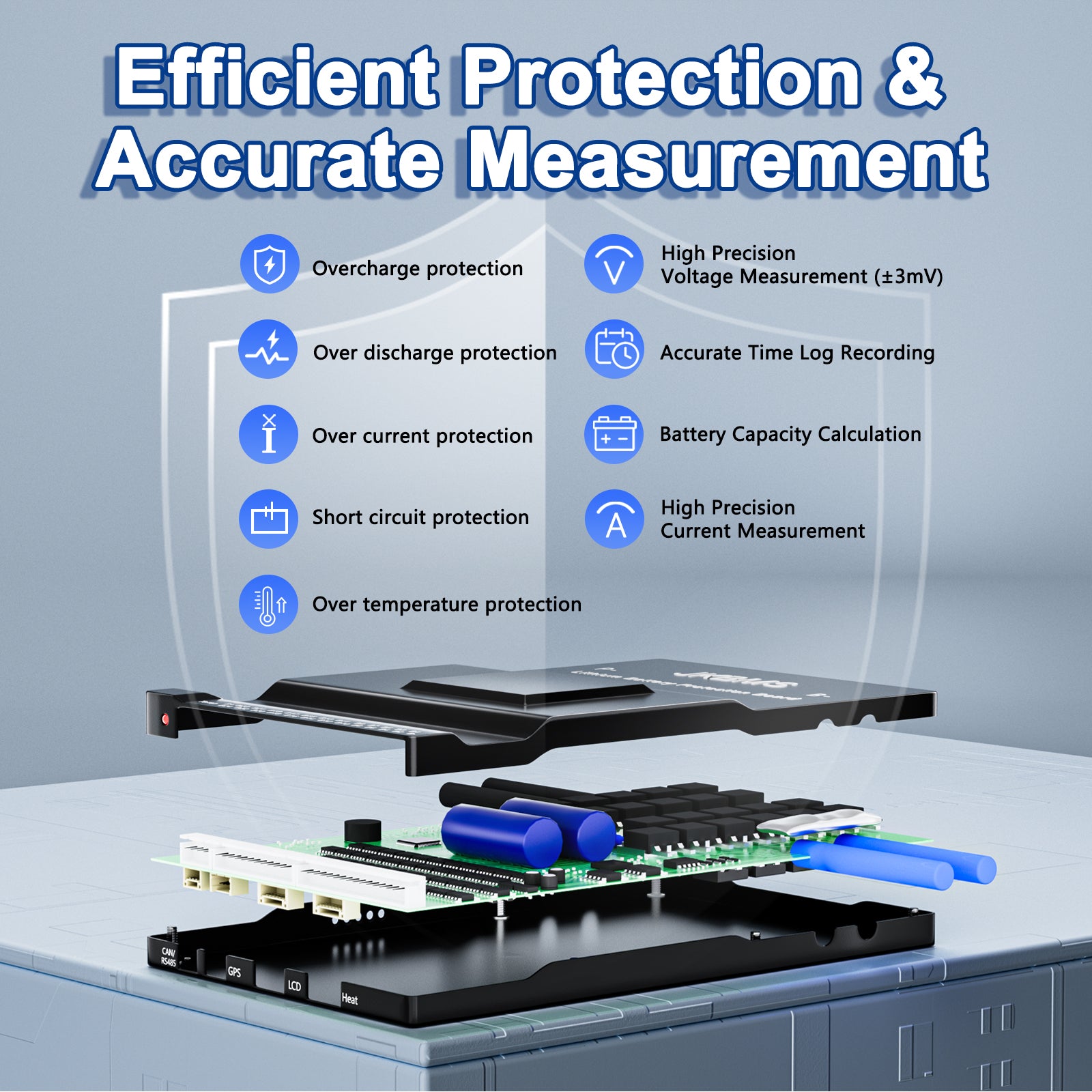

Intelligent Battery Protection

JK BMS continuously monitors battery conditions to ensure safe and stable operation. The system provides multiple protection functions including:

Over-charge protection

Over-discharge protection

Over-current protection

Short-circuit protection

Over-temperature protection

Low-temperature protection

These protections help prevent battery damage and improve overall system safety.

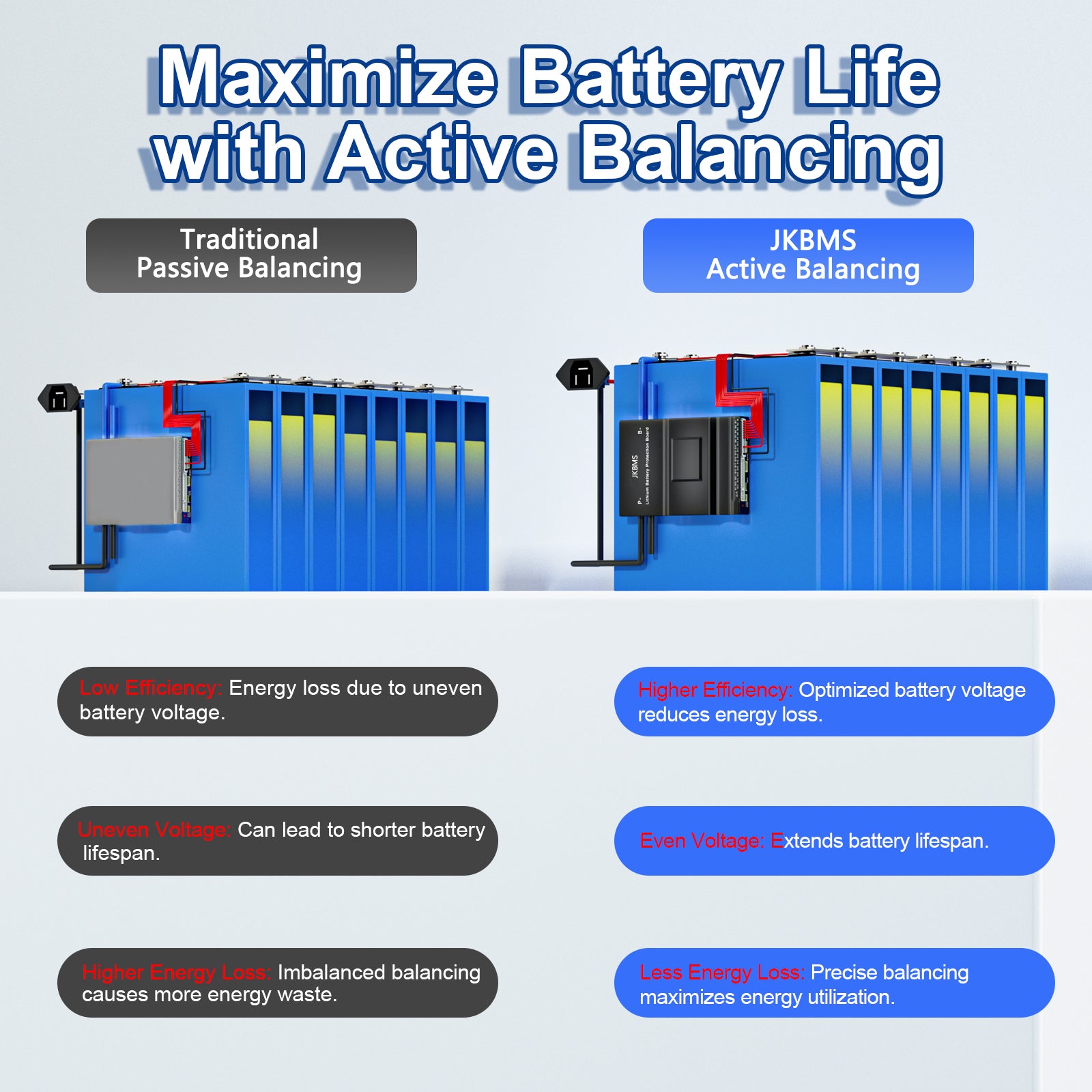

Active Balancing Technology

JK BMS features high-efficiency active balancing technology that transfers energy between cells to reduce voltage differences.

Compared with traditional passive balancing, active balancing can:

Improve battery pack consistency

Reduce energy loss

Extend battery lifespan

Increase overall system efficiency

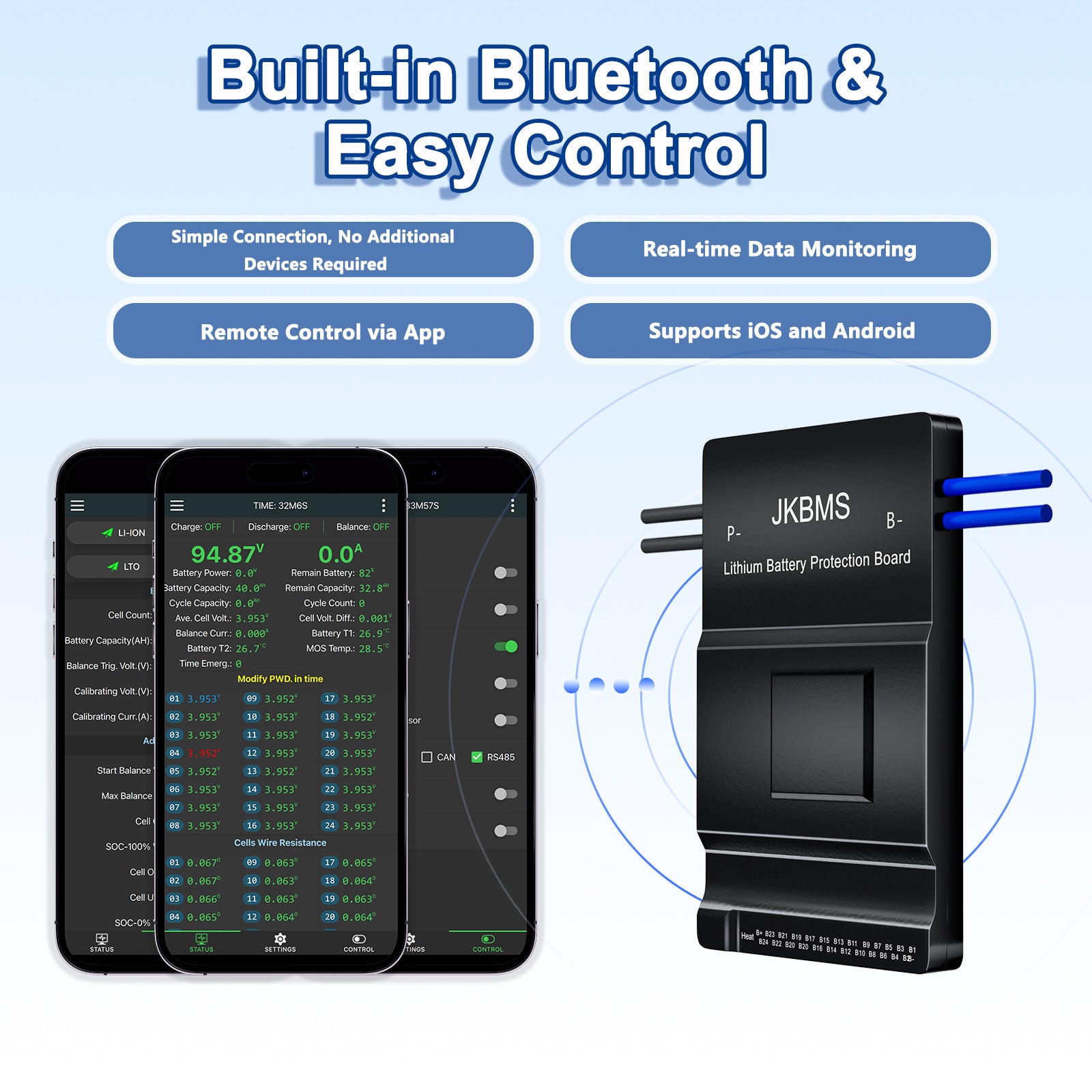

Real-Time Monitoring via Bluetooth

The built-in Bluetooth module enables convenient wireless monitoring through the mobile app.

Users can easily view key battery data such as:

Individual cell voltage

Total battery voltage

Charge and discharge current

Battery capacity and SOC

Temperature data

Alarm and protection status

Expandable Accessories

JK BMS supports multiple optional accessories depending on the model:

2-inch LCD display

4.3-inch LCD display

RS485 communication module

CAN communication interface

Parallel communication modules

Heating function for low-temperature environments

These accessories allow users to build a more flexible and intelligent battery management system.

Wide Application Compatibility

JK BMS supports various lithium battery chemistries, including:

LiFePO4 (LFP)

Li-ion

Lithium Titanate (LTO)

Common applications include:

Home solar energy storage systems

Off-grid power systems

RV and marine battery systems

Electric vehicles and e-bikes

DIY lithium battery packs

Reliable Battery Management Solution

JK BMS is trusted by DIY battery builders, solar installers, and energy storage enthusiasts worldwide. With intelligent monitoring, advanced balancing technology, and comprehensive protection features, JK BMS provides a reliable solution for modern lithium battery systems.
