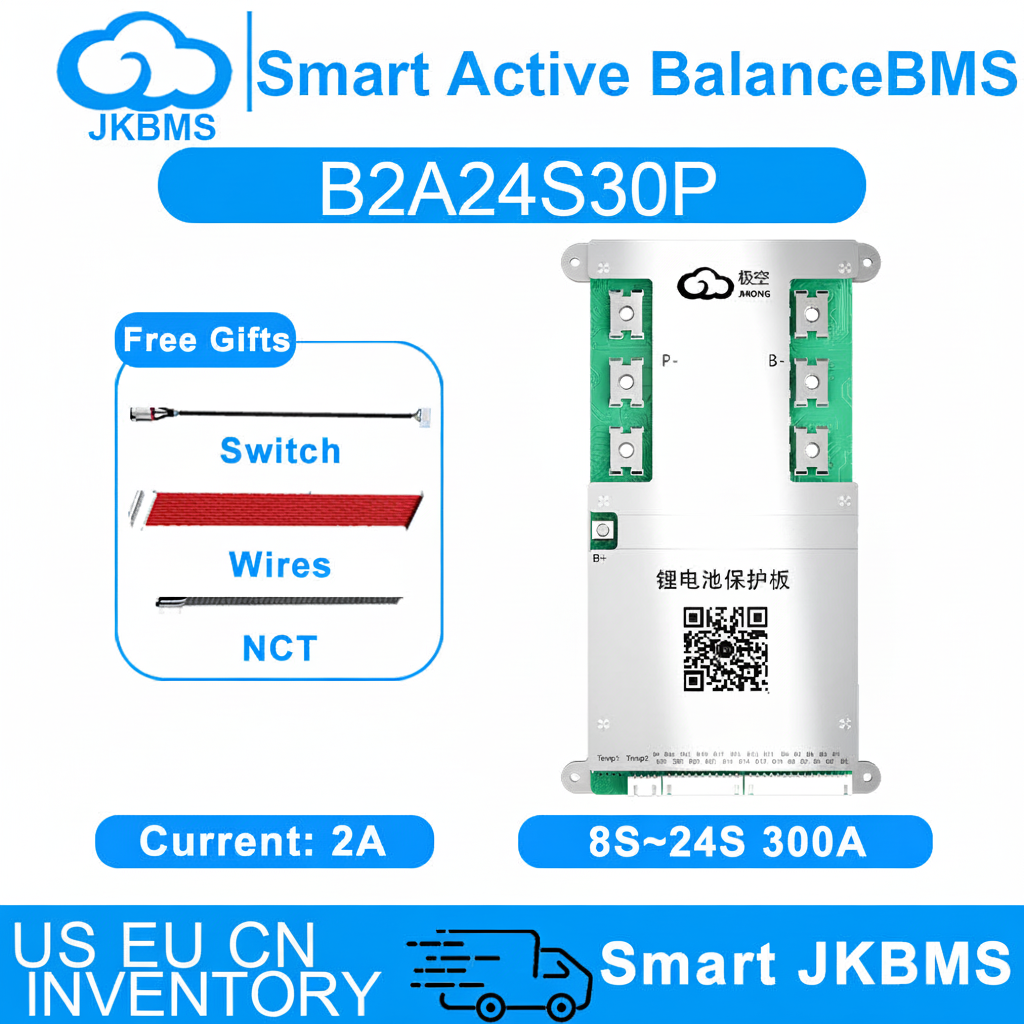

Super Heavy-Load at 72V — JKBMS JK-B2A24S30P 300A Smart BMS for 8S–24S
The JK-B2A24S30P covers the full 8S–24S voltage range (24V–72V) at 300A continuous current with 2A active balancing — the definitive choice for electric forklifts, heavy tourist vehicles, and high-performance applications in the super heavy-load category. With Bluetooth and UART for LCD display monitoring as standard, pack health is always visible.
Compatible chemistries: LiFePO4 / Li-ion / LTO

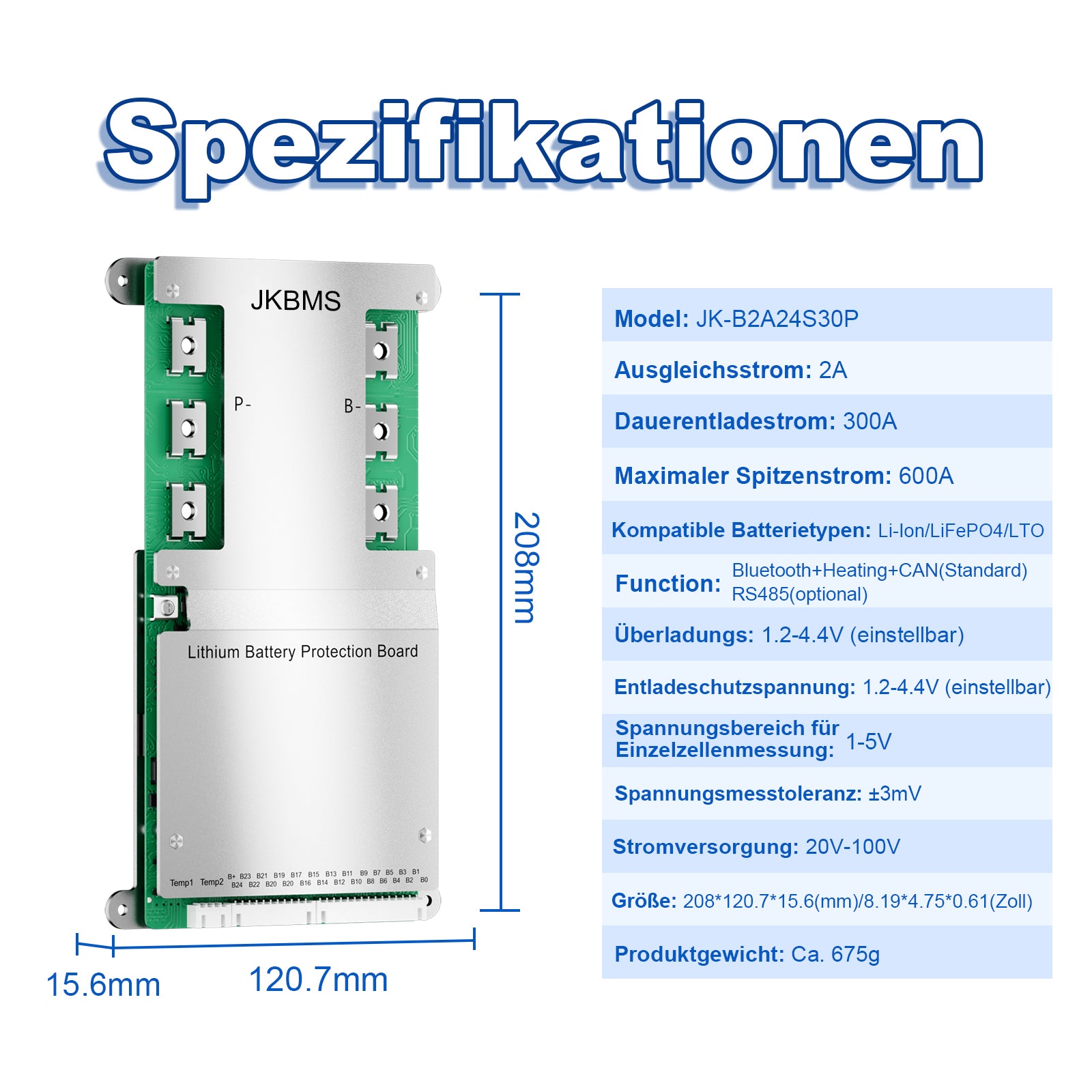

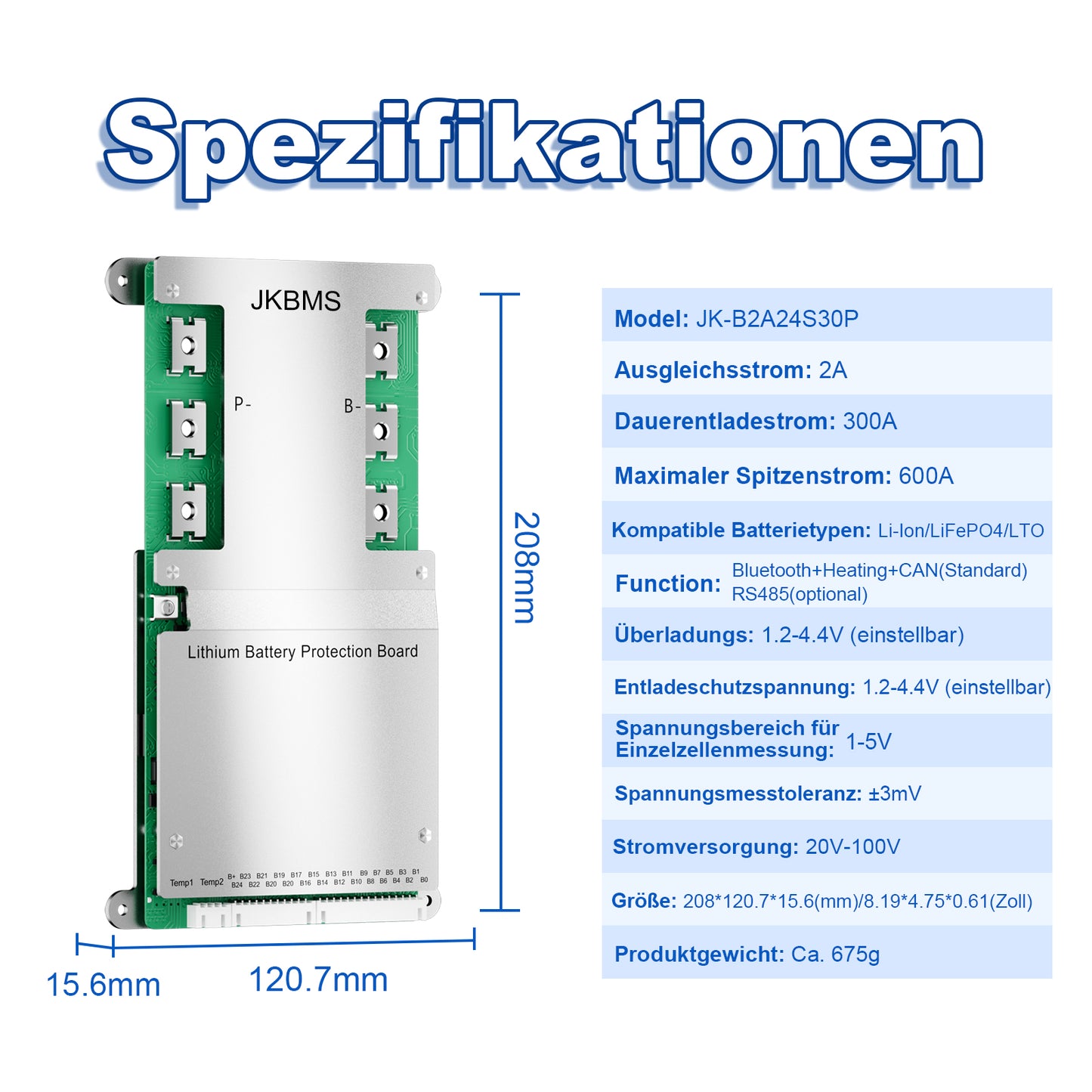

Key Specifications
| Parameter | Specification |
|---|---|
| Model | JK-B2A24S30P |
| Cell Configuration | 8S – 24S (24V – 72V) |
| Continuous Current | 300A |
| Active Balance Current | 2A |

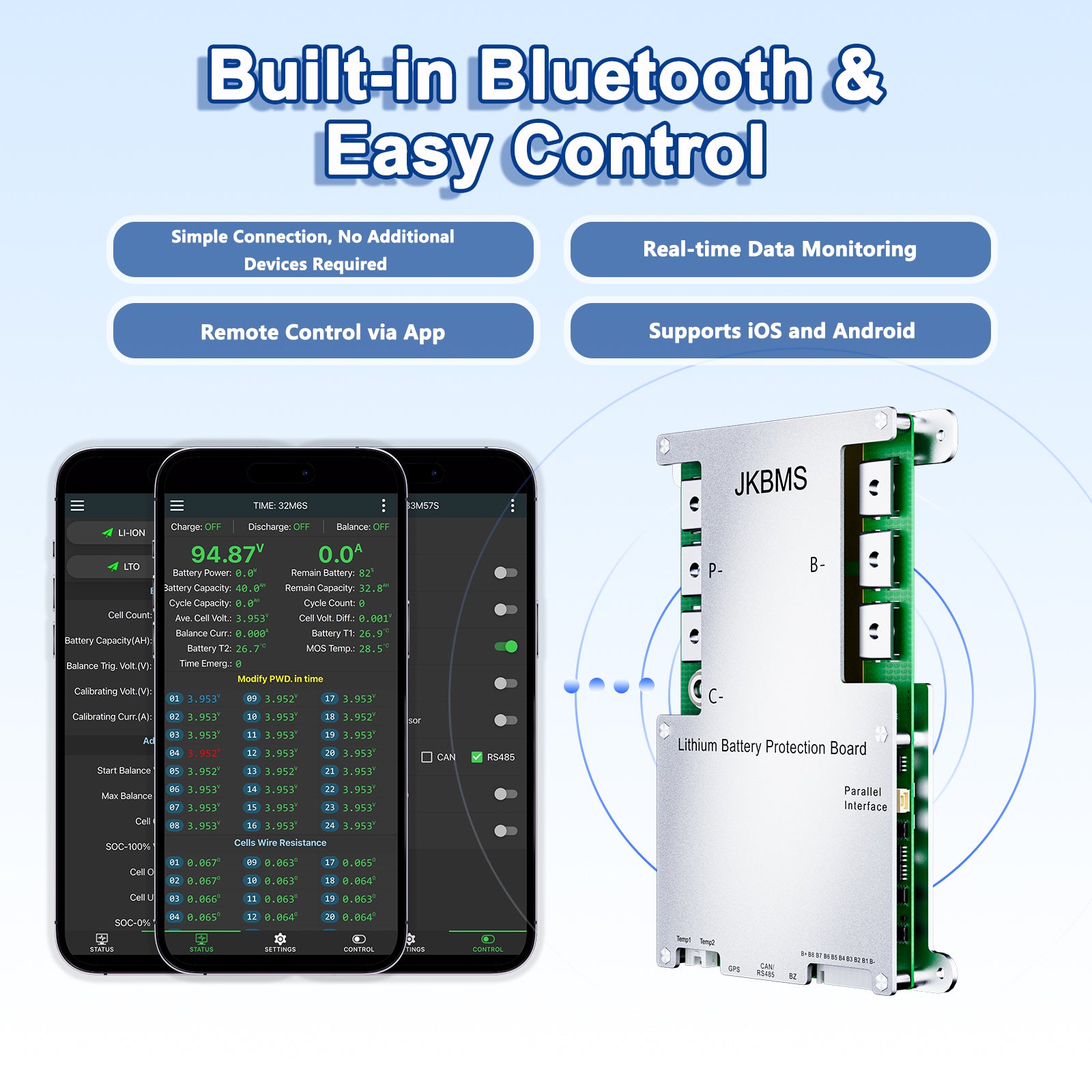

| Standard Communication | Bluetooth + UART (LCD display port) |
| Compatible Chemistry | LiFePO4, Li-ion, LTO |

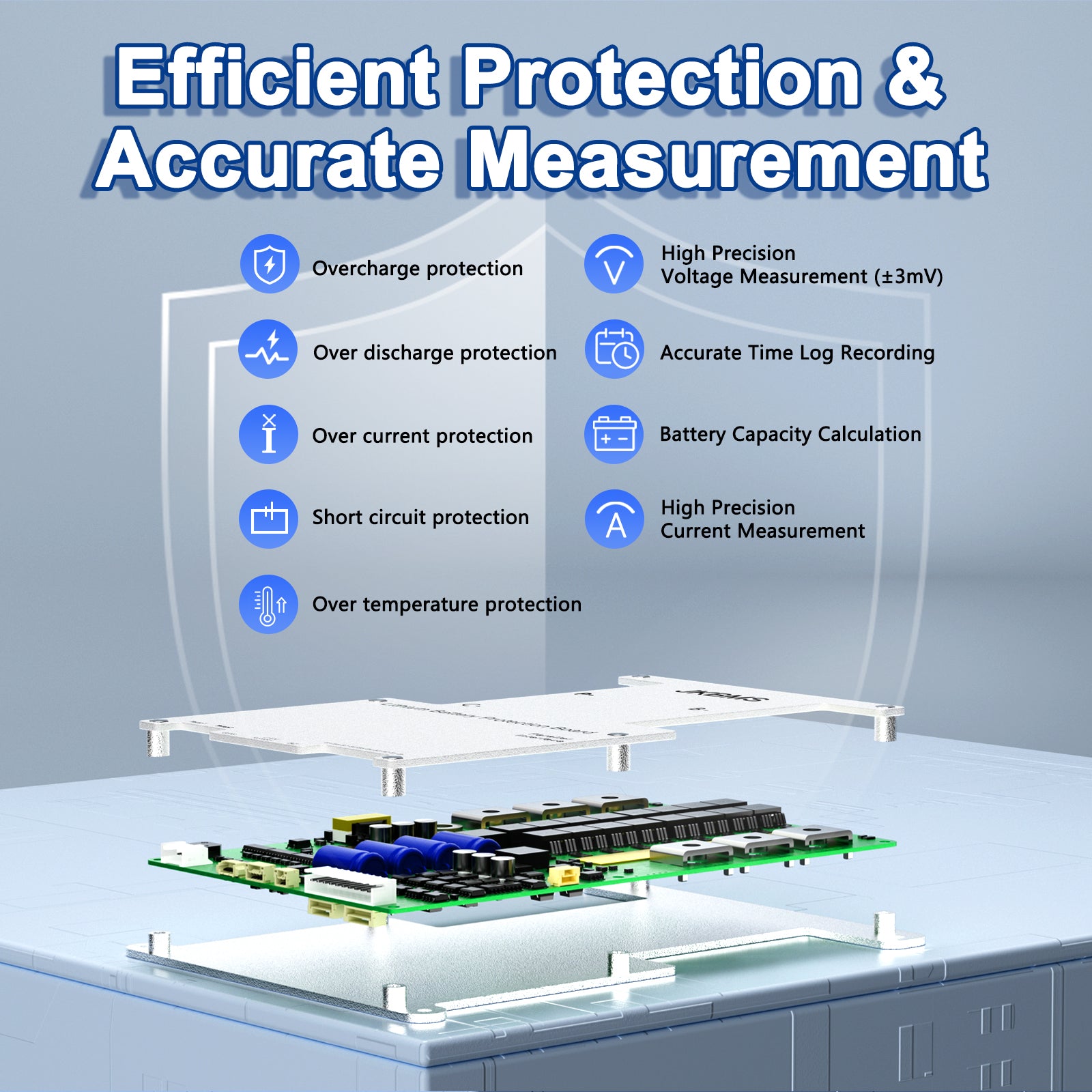

| Protection | Over-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature |
Voltage Platform & Load Class — Where This BMS Fits
📊 24S (72V) — Super Heavy-Load / High-Performance at 300A
The 24S platform at 72V combined with 300A continuous current puts this BMS in the super heavy-load / high-performance category — electric forklifts, heavy tourist vehicles, engineering machinery, and competition EVs where standard 150–200A boards simply aren't enough.

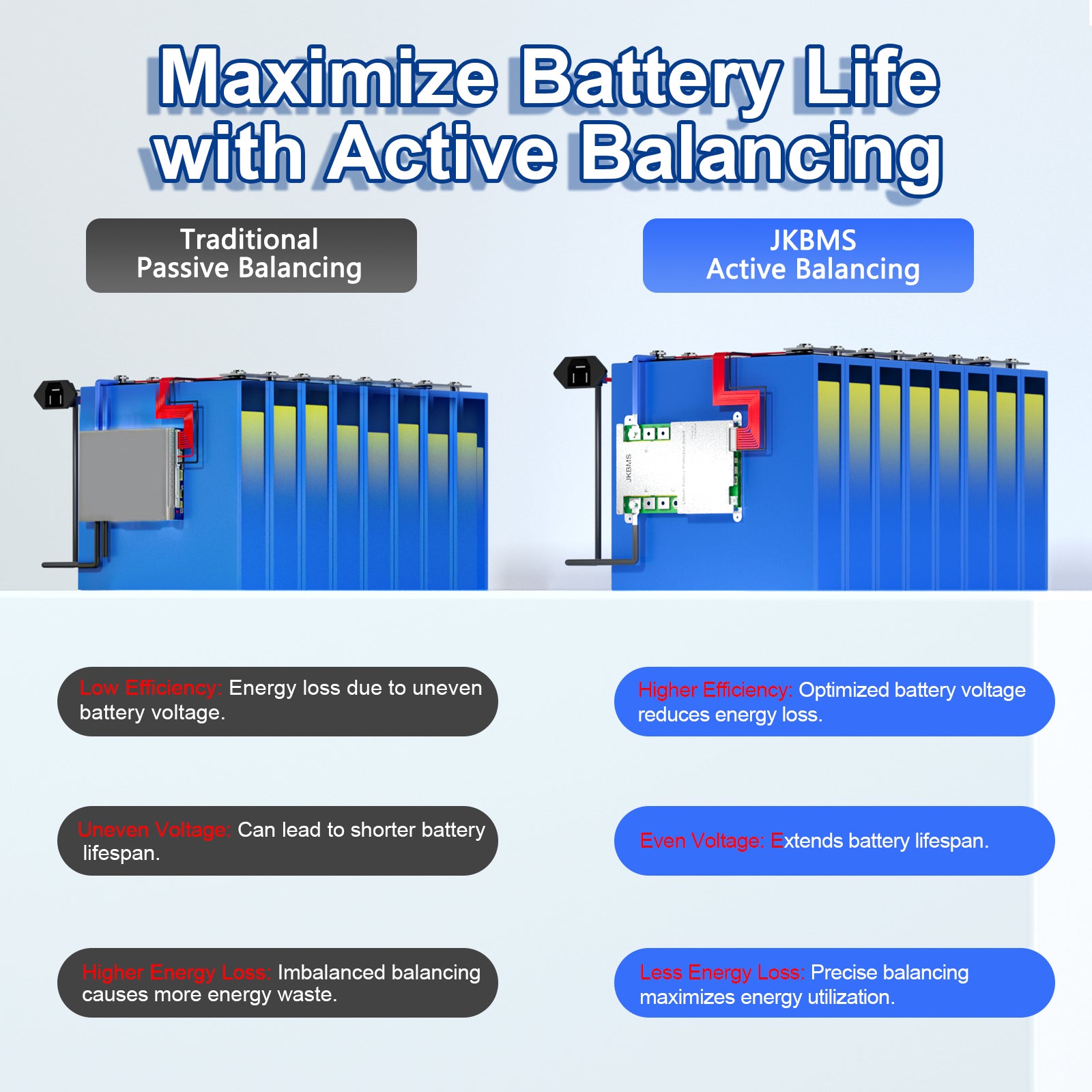

⚡ 2A Active Balancing at 300A — Protecting a Maximum-Investment Pack
A 300A 72V lithium pack represents a significant capital investment. The 2A active balancer continuously equalizes cells during charge, discharge, and rest — keeping every cell matched through thousands of high-current cycles and maximizing the return on your battery investment.
Who Is This BMS For?
- 🚜 Electric forklifts (60V–72V, 300A)
- 🛴 Heavy tourist & sightseeing vehicles
- 🏍️ High-performance electric motorcycles and competition EVs
- 🛠️ Engineering machinery and special-purpose vehicles
- 🏭 OEM manufacturers of 24V–72V 300A high-performance battery packs
Compare Versions — Find the Right Fit
| Feature | Standard (This Model) | HC Version | HCR Version |
|---|---|---|---|
| Bluetooth | ✅ | ✅ | ✅ |
| UART (LCD port) | ✅ | ✅ | ✅ |
| CAN Bus | ❌ | ✅ | ✅ |
| Heating Film Control | ❌ | ✅ | ✅ |
| RS485 | ❌ | ❌ | ✅ |
| Soft Parallel (PLINK Module) | ❌ | ✅ | ✅ |
| Hard Parallel (Parallel Module) | ❌ | ❌ | ✅ |
| Buzzer Alert | ❌ | ❌ | ✅ |
📩 Need CAN/RS485 or parallel expansion? Contact us about HC/HCR versions.
OEM / ODM & Bulk Orders
📩 For wholesale pricing, MOQ, and custom configurations, please contact us directly.
