Full-Featured ESS & Parallel-Ready — JKBMS JK-B2A8S20P-HCRPB 200A Smart BMS for 3S–8S
The JK-B2A8S20P-HCRPB is the full-featured version of the 200A / 2A active balance platform — adding RS485, Buzzer Alert, and hard parallel interface on top of the HC version’s Heating, CAN, and UART. Designed for small home ESS, inverter-integrated systems, and multi-pack parallel installations that require complete communication and expansion capability.
Compatible chemistries: LiFePO4 / Li-ion / LTO

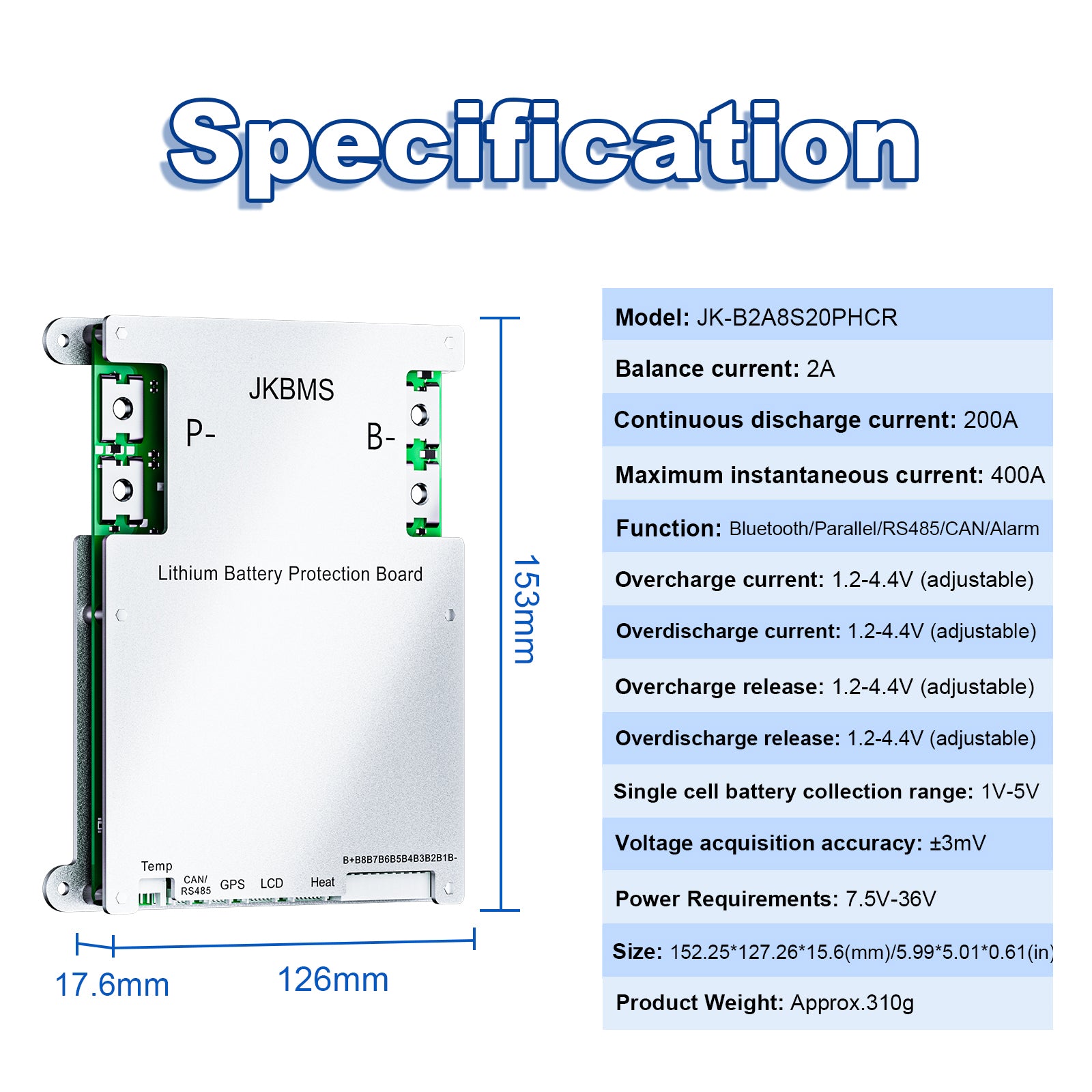

Key Specifications
| Parameter | Specification |
|---|---|
| Model | JK-B2A8S20P-HCRPB |
| Cell Configuration | 3S–8S (LiFePO4 / Li-ion) · 7S–8S (LTO) |
| Continuous Current | 200A |
| Active Balance Current | 2A |
| Standard Communication | Bluetooth + UART + CAN + RS485 |
| Heating Support | ✅ Heating film control port (built-in) |
| Buzzer Alert | ✅ Built-in |
| Parallel Interface | ✅ Enhanced hard parallel interface (Parallel Module compatible) |
| Compatible Chemistry | LiFePO4, Li-ion, LTO |
| Protection | Over-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature |
Note: LTO (Lithium Titanate) cells require a minimum of 7S configuration.
What the HCRPB Version Adds Over HC
📶 RS485 — SCADA & Multi-Device Integration
RS485 enables integration with SCADA systems, energy management platforms, and multi-device monitoring networks — essential for professional ESS installations and industrial applications.
🔔 Buzzer Alert — Audible Fault Notification
Built-in buzzer provides immediate audible alerts for fault conditions — over-voltage, under-voltage, over-temperature, and other protection events — without requiring external monitoring.
🔗 Hard Parallel Interface — Multi-Pack Expansion
Enhanced hard parallel interface supports connection of the optional Parallel Module (sold separately) for hardware-level multi-pack parallel operation. Also supports soft parallel via the optional PLINK Module (sold separately).
🔥 Heating Film Control — Low-Temperature Protection
Built-in heating film control port activates the heating film when cell temperature drops below the configured threshold — preventing cold-charge damage in cold-climate installations.
🔌 CAN + UART — Inverter Integration & Display Support
CAN bus enables direct BMS-to-inverter communication. UART connects to LCD displays for local panel monitoring.
Who Is This BMS For?
- 🏠 Small home ESS with RS485/SCADA integration
- 🔗 Multi-pack parallel systems (soft + hard parallel)
- 🔋 Backup power systems requiring full communication stack
- 🏭 OEM manufacturers of professional 200A battery systems
Compare Versions — Find the Right Fit
| Feature | Standard | HC Version | HCR Version (HCRPB) * (This Model) |
|---|---|---|---|
| Bluetooth | ✅ | ✅ | ✅ |
| UART (LCD port) | ✅ | ✅ | ✅ |
| CAN Bus | ❌ | ✅ | ✅ |
| Heating Film Control | ❌ | ✅ | ✅ |
| RS485 | ❌ | ❌ | ✅ |
| Soft Parallel (PLINK Module) | ❌ | ✅ | ✅ |
| Hard Parallel (Parallel Module) | ❌ | ❌ | ✅ |
| Buzzer Alert | ❌ | ❌ | ✅ |
* HCR Version (HCRPB) includes Heating Film Control, CAN Bus, RS485, Parallel Module interface, and Buzzer Alert as standard.
📩 Not sure which version fits? Contact us.
Custom Configuration Available
All JKBMS products support feature customization for OEM orders — including communication interfaces, protection thresholds, balance parameters, and hardware configuration. 📩 Contact us to discuss your custom requirements.
